Massdrop X Alex Cavalli Tube Hybrid (CTH) Amplifier MDX-12951-1



Description:

  • Condition: New Opened Box
  • Features:
  • Massdrop x Alex Cavalli
  • Chassis: High-grade CNC-milled aluminum with bead-blasted finish, silicone pads on feet
  • Frequency response: 20 Hz–20 kHz, -0.2 dB
  • Maximum power, 50 ohms: 1W Rms per channel
  • Output impedance: < 0.5 ohm at 1 kHz
  • THD: < 0.008%, 20 Hz–20 kHz 1 Vrms
  • THD: 0.0014% at 1 kHz, 1 Vrms with 50R load
  • IMD: 0.002% CCIF 1 Vrms
  • SNR: -97 dB, 20 Hz–20 kHz (1 Vrms into 45 ohms)
  • Crosstalk: -85 dv at 1 kHz
  • Topology: Capacitor-coupled tube hybrid using 6922 tube, single-ended
  • Gain: 8x (18 dB)
  • Input: RCA
  • Output: 4-pin XLR, ¼ in (6.3 mm) TRS headphone jacks
  • Protection: Delayed start with muting relay and DC offset detection
  • Power supply: Wall wart with 28V DC 1.25A
  • Power consumption: Maximum 35W (28V, 1.25A), ~9W idle
  • Dimensions: 8.3 x 9.1 x 2.2 in (210 x 230 x 57 mm)
  • Weight: 3.6 lbs (1,625 g)
  • Individually serialized

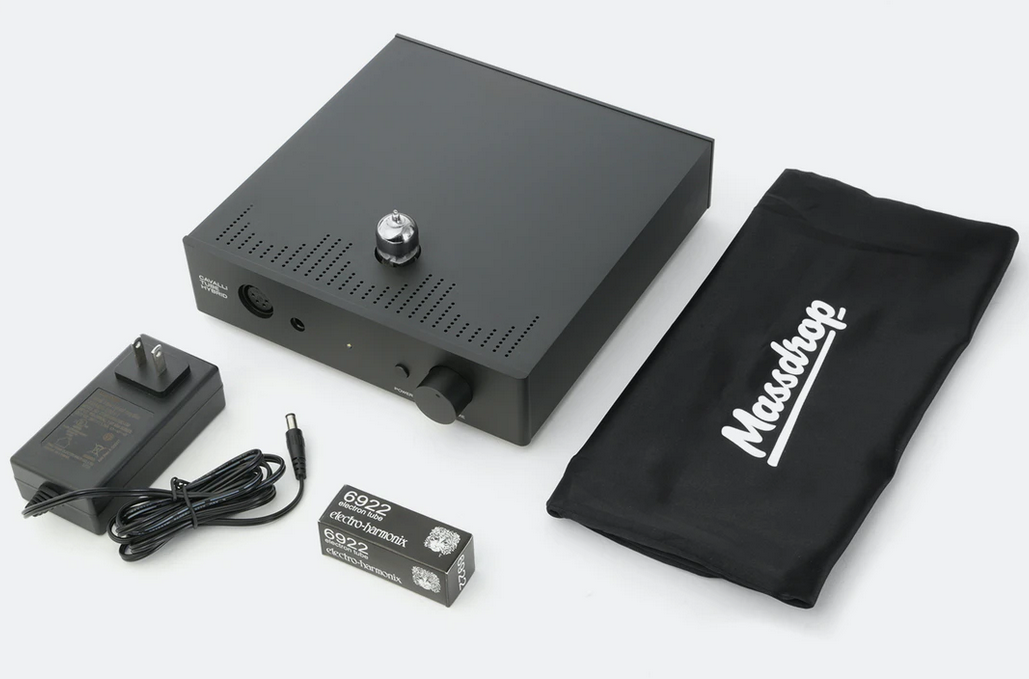

Included

  • Massdrop X Alex Cavalli
    Tube Hybrid Amplifier
  • 6922 dual-triode vacuum tube
  • Cloth storage bag
  • Switching power supply that handles 100–240 VAC
